Carbonic film heating
Carbonic Film Heating materials are recognised as the greatest advancement within the last 100 years in heating. These new innovative advances bring a new dawn of heating experience in using less electricity with greater comfort for the user. Carbon heat products solve heating problems in residential and commercial environments by facilitating the most effective distribution of radiant heat. Radiant heat and the sun work on the same principal of enveloping you in comforting warmth.

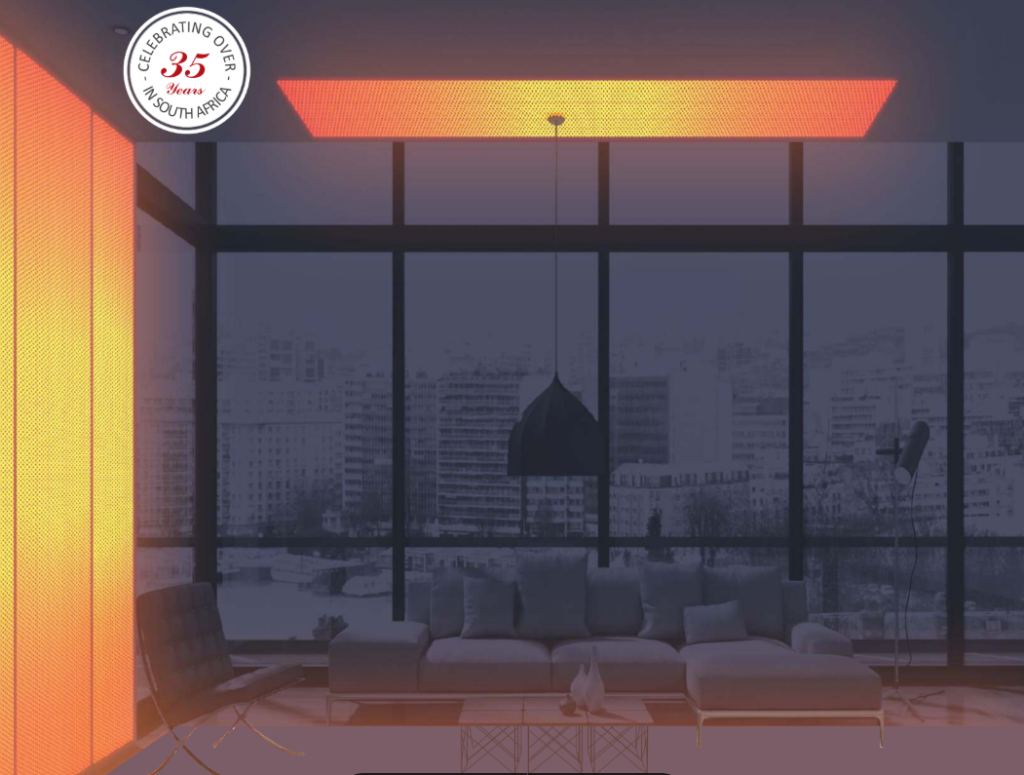

Carbonic Film Heating is a NEW and innovative product providing heat from WALL and CEILING.
What is Carbonic Film Heating?
Carbonic Film Heating (Carbon Fibre) materials are recognised as one of the greatest advancements within the last 100 years in heating. Carbonic Film consists of an ultra thin fabric of just 0.3mm in thickness and weighs only 350 grams per square metre.
Unlike our conventional floor heating systems, the Carbonic Film Heating is the ideal solution to warming a room through Radiant WALL and CEILING heating where floor heating cannot be installed due to areas in the home or commercial sites having been previously tiled or existing immovable floor coverings already fitted.

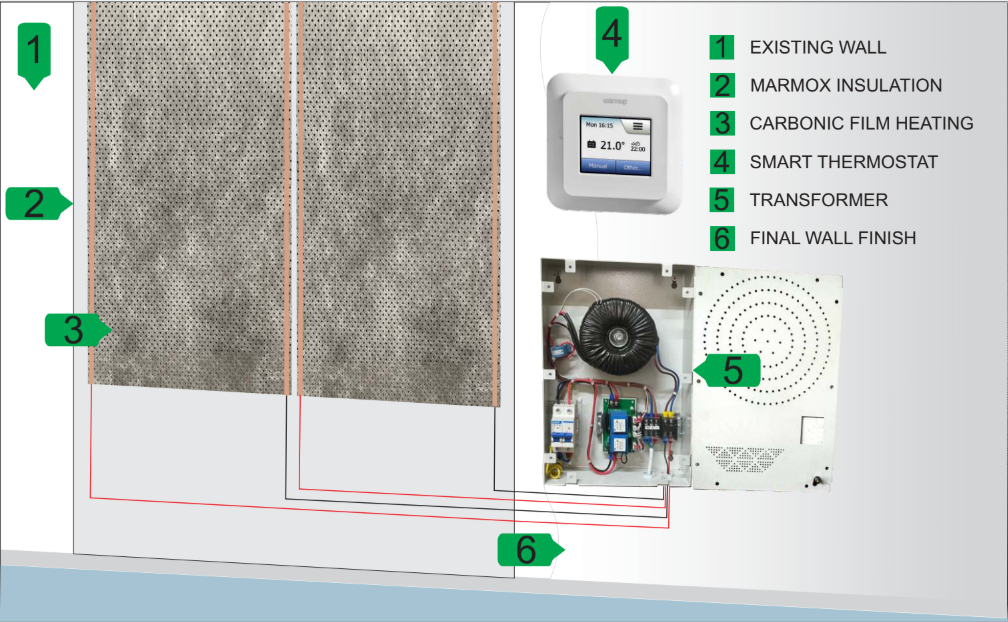

Carbonic Film WALL and CEILING heating works with a protective low voltage transformer with a 48 Volt output which makes it totally safe should a nail or screw be planted or drilled into the wall.
The WALL or CEILING heat is comfortably controlled by the room thermostat using modern Smart Home thermostat technology which further reduces the running cost of this already extremely energy efficient
“carbon fibre” product.
Features & Benefits
- Easy and Quick to install.
- Safe to low voltage technology (48 Volts).
- High heat output and fast heat up time.
- Ultra thin.
- No heating wires (resistance wires).
- Radiant Wall & Ceiling heat will not dry out the air or aggravate allergies.
- Radiant heat is clean, silent and odor-free.
- Patented manufacturing process.
- Fully embedded in the Wall or Ceiling.
- Minimal depth of installation 2-3mm for maximum energy efficiency.
- Once installed it can be plastered, painted, or wallpapered.
- Flexible installation in Walls and Ceiling.
- Allows towel rails or shelves to be fastened into the heating.
Technical Data
| Description | Measurement |
| Wattage/m2 | 220 +/- 7,5% W/m2 |
| Wattage/m | 121 +/- 7,5% W/m |
| Total Width | 600mm |
| Copper bus bar width | 20mm |
| Heating Width | 550mm |
| Voltage input | 48V |
| Thickness | 300μm |
| Max. Amps | 16A |
| Amps per linear meter | 2.52A/lm |
| Resistance | 34,4 +/- 7,5%Ω/m2 |
| Weight | 350g/m2 |
| Max. Length under rated condition | 6m |
